Coating systems

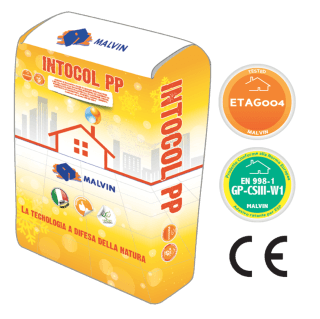

Adhesive and white or grey scraper based on hydraulic binders for gluing and shaving inside and outside of polystyrene insulating panels, polystyrene (also embossed), polyurethane, cork, cement wood . Suitable, due to its adhesion and elasticity qualities, also as a spur on concrete surfaces, rustic, plastic and/or mineral coatings, traditional or premised plasters based on lime and cement both new and old, even if painted provided that they be in an excellent State of preservation, on plasters that have withdrawal injuries, with application in the first coat of Malvin net mesh glass fibre plaster rack 4x4mm from minimum 150 GR, ETAG 004 certified.

Package: 25 kg sacks-70 sacks-17.50 QL footboards

Usage: Indoor/outdoor

Color: White/Grey

Particle size: ≤ 0.6 mm

Yield: As adhesive gluing points 2/3 kg/MQ/gluing at full surface 4/5 kg/MQ • As a spur 3/4 kg/MQ for two coats

Vapour-passage resistance coefficient EN 1015-19: μ ≤ 10

Capillary water absorption EN 1015-18: Class "W1"

Thermal conductivity EN 1745: λ10, dry, mat = 0.35 W/MK

Flexibility: Excellent

Certification: Tested according to ETAG 004

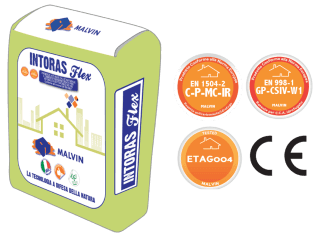

Pre-mixed, high elasticity anti-carbonate. thixotropic, water-repellent, fibre-reinforced, shrinkage-compensated according to EN 1504-2 and EN 998-1 based on special hydraulic binders, suitable for universal use on any substrate. For the external and internal smoothing of concrete surfaces, of rustic, plastic and / or mineral coatings, of traditional or premixed plasters based on lime and cement, both new and old, even if painted, provided they are in excellent condition, of plasters that present shrinkage lesions, concrete block masonry, autoclaved cellular concrete, coatings in polystyrene panels, polystyrene (also embossed), polyurethane, cork, woodcement. To uniform plastered surfaces with different mortars. As a bonding base for coatings in polystyrene panels, polystyrene (also embossed), polyurethane, cork, cement wood. Used as shaving on-coatings allows use as a decoration elastomeric water paint MEHLVIT ELS / PLUS or AGROPOLI ELS / PLUS. Specific for finishing the thermal insulating plaster system (INTOTHERM). With sponged finish.

Woven mesh made of fibreglass with antialkaline dressing. ETAG Certificate 004.

Packaging: Rolls 1x50 m

Weight fabric: 150 g/sq. m

Knitting: 4x4 mm

Tensile strength Texture UNI 9311/5: > 1,186 N/5cm

Tensile strength Warp UNI 9311/5: > 1,323 N/5cm

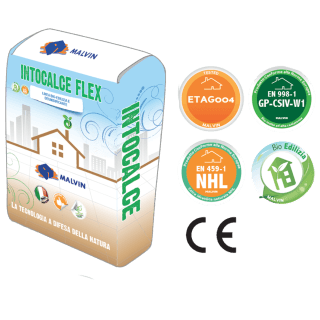

Eco-friendly, water-based Bio-adhesive with natural hydraulic lime base NHL 3.5 According to EN 459-1 for the gluing and shaving inside and outside of insulating panels of polystyrene, polystyrene (also embossed), polyurethane, cork, cement wood . Suitable, for its adhesion and elasticity qualities, as a spur on concrete surfaces, rustic, plastic and/or mineral coatings, traditional or premised plasters based on lime and cement both new and old, even if painted provided that in excellent condition Storage, on plasters that have withdrawal injuries or to standardise plastered surfaces. With different mortars, with application in the first hand of malvin net mesh door fiberglass plaster 4x4mm knitted by minimum 150 GR, ETAG 004 certified. It does not form barriers to steam and does not contain solvents. Recyclable as inert at the end of life. Specific for the preservation of historical conservatively, thanks to the natural origin of its components that respect the nature of the materials originating from the structures of historical interest.

Package: 25 kg sacks-70 sacks-17.50 QL footboards

Usage: Indoor/outdoor

Color: Hazelnut

Particle size: ≤ 0.6 mm

Yield: As adhesive: gluing in points 2/3 kg/MQ/gluing at full surface 4/5 kg/MQ • As smoothing: 3/4 kg/MQ for two coats

Vapour-passage resistance coefficient EN 1015-19: μ ≤ 10

Capillary water absorption EN 1015-18: Class "W1"

Thermal conductivity EN 1745: λ10, dry, mat = 0.35 W/MK

Flexibility: Excellent

Certification: Tested according to ETAG 004

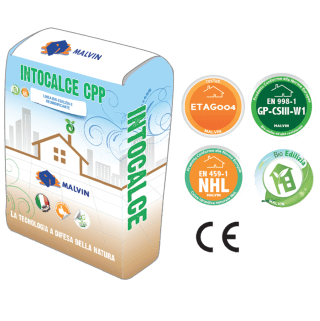

Eco-friendly, high elasticity, anti-carbonate. Thixotropic, Hydrofugo, fibro-reinforced Bio-smoothener, with compensated shrinkage based on natural hydraulic lime, NHL 3.5 According to EN 459-1, suitable for universal use on any compatible support , to be applied by hand with sponge finish. It does not form barriers to steam and does not contain solvents. Recyclable as inert at the end of life. Specifically for the preservation of historical artefacts, thanks to the natural origin of its components that respect the nature of the materials originating from the structures of historical interest. For the external and internal shaving of concrete surfaces, of rustic, plastic and/or mineral coatings, traditional or pre-mixed plasters based on lime and cement, both new and old, even if varnished, provided that they are in excellent state of preservation, Plasters made of natural hydraulic lime, plasters with withdrawal injuries, masonry in concrete blocks, autoclavable cellular concrete. Can standardise surfaces plastered with different mortars. As adhesive/smoothing of coat coverings in polystyrene panels, polystyrene (also embossed), polyurethane, cork, cement wood. Used as a shave on coat coverings allows you to use Elastomeric mehlvit els/Plus or Agropoli els/plus decoration. Specific for the finishing of the system thermoinsulating plasters (intocork).

Package: 25 kg sacks-70 sacks-17.50 QL

Usage: Indoor/outdoor

Color: Hazelnut

Particle size: ≤ 0.6 mm

Yield: As adhesive: gluing in points 2/3 kg/MQ; Full surface gluing 4/5 kg/MQ • As smoothing: 3/4 kg/MQ per hand

Vapour-passage resistance coefficient EN 1015-19: μ ≤ 10

Capillary water absorption EN 1015-18: Class "W1"

Thermal conductivity EN 1745: λ10, dry, mat = 0.35 W/MK

Flexibility: Excellent

Certification: Tested according to ETAG 004

Sintered Expanded polystyrene slab Neopor BASF with the addition of scratched cut by a straight edge block for thermal insulation in building. CE and ETICS marking product.

Reference standard uni en 13163 and uni en 13499.

Slab Thickness: From 20 to 200 mm

Slab Size: 1000x600mm

Panel: Cut slab from block to sharp edge

NEOB 031-T100

Thermal conductivity declared Λd • EN 12667: W/MK 0.031

Fire reaction EN 13501-1: Euroclass E

Specific heat EN 10456 • C •: J/kg • K 1350

Tensile strength EN 1607: kPa ≥ 100

NEOB 031-T150

Thermal conductivity declared Λd • EN 12667: W/MK 0.031

Fire reaction EN 13501-1: Euroclass E

Specific heat EN 10456 • C •: J/kg • K 1350

Tensile strength EN 1607: kPa ≥ 150

Synthetic expanded polystyrene slab Neopor BASF with addition of embossed printed graphite with cut cuts for thermal insulation with coat. CE and ETICS marking product. Reference standard uni en 13163 and uni en 13499.

Slab Thickness: From 30 to 200 mm

Slab Size: 1000x500mm

Panel: Printed slab with embossed surface and sharp cut cuts

Neodurwt 031

Thermal conductivity declared Λd • EN 12667: W/MK 0.031

Fire reaction EN 13501-1: Euroclass E

Specific heat EN 10456 • C •: J/kg • K 1350

Tensile strength EN 1607: kPa ≥ 150

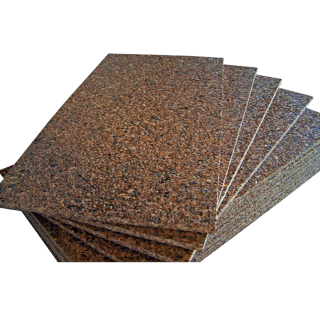

Panel in natural toasted Cork aggregate without addition of glues or chemical substances thanks to the thermal roasting process which, by causing the melting of the natural resins present in the cork, aggregates the granules and forms the Panesl. In addition, the roasting process does not alter the characteristics of Cork, ANSI improves the characteristics of insulation, causing the expansion of the granule with consequent incorporation of air.

Slab Thickness: from 10 to 100 mm

Slab Size: 1000x500mm

Phono Power Insulation: Rw 58db

Subertherm

Thermal conductivity declared Λd • EN 12667: W/MK 0.041

Reaction to fire: Class 2

Vapour breathability: μ: 10:13

Tensile strength: 270 KPa

Universal anchor in polypropylene with standard head and nylon pin. ETAG 014 Certificate.

Outside diameter • Ø10

Length • From 70 to 220 mm

Panel thickness • 20 to 185 mm

Minimum anchorage thickness • 25 mm

Do not use on the ceiling

EXTERNAL DIAMETER • Ø10

LENGTH • from 120 to 300 mm

PANEL THICKNESS • from 20 to 210 mm

MINIMUM ANCHORAGE THICKNESS • 60 mm

Aluminium opening seal to hold the insulating panel in the starting phase at the base of the thermocoat. ETAG Certificate 004.

Art. From NAF 16002 to 16022

Height • depth • length

35mm x 35mm x 2, 5MT to 35mm x 285 mm x 2.5 MT

8/10 profile thickness up to 125 mm depth

10/10 profile thickness from depth 135 mm

Panel Thickness: 30 to 180 mm *

Packs

From NAF 16002 to 16016 • 50 m

From NAF 16017 • 25 m

* Available on request up to 305 mm in length.

Aluminium Underwindow profile. Sheet thickness 8/10 or 10/10 to hold the Insulation panel underneath the windows. ETAG Certificate 004.

Art. From NAF 16040 to 16055

Depth/length

33mm x 2, 5MT to 183 mm x 2.5 m

8/10 profile thickness up to 123 mm depth

10/10 profile thickness from depth 133 mm

Panel Thickness: 30 to 180 mm

Pack of 25 m

DIMENSIONS

Art. NAF 15003

Width 22x22 mm • length 2.5 m • net 12 cm x 8 cm

Art. NAF 15003 D

Width 22x22 mm • length 2.5 m • net 15 cm x 10 cm

Art. NAF 15003 C

Width 22x22 mm • length 2.5 m • net 23 cm x 10 cm

PACK OF 125m

Aluminium perforated edge protector with fibreglass mesh 150 gr/MQ with two holes, aluminium thickness 4/10 bonding network/Ultrasound profile, for cladding edges. ETAG Certificate 004.

Size

Art. NAF 15002

Width 25x25 mm • Length 2.5 m • Mesh 12 cm x 8 cm

Art. NAF 15002 A

Width 25x25 mm • Length 2.5 m • Net 15 cm x 10 cm

Art. NAF 15002 B

Width 25x25 mm • Length 2.5 m • Net 23 cm x 10 cm

Pack of 125m

Flexible PVC perforated edge guard with two-hole fibreglass mesh, pvc thickness 4/10, for coat edges with length and variable angle. ETAG Certificate 004.

Dimensions Art. NAF 15003 R

Width 25x25 mm • Length 2.5 m • Net 10 cm x 10 cm

Pack of 25m

PVC with 2-hole fibreglass mesh, pvc thickness 5/10 for edges/arches of coat coverings. ETAG Certificate 004.

Dimensions Art. NAF 15004 A

Width 30x30 mm • Length 2.5 m • Net 10 cm x 15 cm

Pack of 62,5m

Reinforcer in adhesive PVC with fibreglass mesh to be used in combination with the starting protector to fix the insulating panel more securely. ETAG Certificate 004.

Dimensions Art. NAF 16000

Length 2.5 m • Net 10 cm

Pack of 125m

PVC perforated drip with fiberglass mesh for horizontal edges, useful for interrupting the water run and deflecting it to the outside. ETAG CERTIFICATE 004.

Perforated PVC drip tray with fibreglass mesh for horizontal edge protectors, useful for interrupting the running of the water and diverting it outwards. ETAG Certificate 004.

Dimensions Art. NAF 15003 B

Width 25x25 mm • Length 2.5 m • Net 10 cm x 10 cm

Pack of 62, 5m

Perforated PVC drip tray with 2 steps and fibreglass mesh, for horizontal edges, useful to interrupt the water travel and divert it outwards. ETAG Certificate 004.

Dimensions Art. NAF 15003 E

Width 25x25 mm • Length 2.5 m • Net 10 cm x 10 cm

Pack of 50m

Dimensions Art. NAF 26001

Length 2.0 m • Net 10 cm x 10 cm

Pack of 40m

Coupling in concealed PVC with continuous expansion and fibreglass mesh, to unite the insulating panels in the critical point of thermal expansion. ETAG Certificate 004.

Dimensions Art. NAF 27001

Length 2.5 m • Net 10 cm x 10 cm

Pack of 62, 5m

PVC concealed expansion joint for corners with fiberglass mesh, to join insulating panels in the corners at the critical thermal expansion point. ETAG CERTIFICATE 004.

DIMENSIONS Art. NAF 27003

Length 2.5 m • 10 x 10 cm net

Pack 62.5m

PVC coupling with visible edges and fibreglass mesh, to unite the insulating panels in the critical point of thermal expansion, it guarantees a perfect aesthetic finish thanks to the visible edge. ETAG Certificate 004.

Dimensions Art. NAF 27002

Length 2.0 m • Net 10 cm x 10 cm

Pack of 50m

PVC joint with a visible edge of expansion for corners with fibreglass mesh to unite the insulating panels in the critical point of thermal expansion, it guarantees a perfect aesthetic finish thanks to the angled edge. ETAG Certificate 004.

Dimensions Art. NAF 27004

Length 2.0 m • Net 10 cm x 10 cm

Pack of 50m

Coupling in combination PVC with variable angles to unite insulating panels in the corners at the critical point of thermal expansion, guarantees a perfect aesthetic finish thanks to the visible edge. Patented. ETAG Certificate 004.

Dimensions Art. NAF 27005

Length 3.0 m • Mesh 12 cm x 12 cm

Pack of 30m

Fixative coloured wall covering based on acrylic micro-emulsions in aqueous dispersion with high penetrating power. anchoring and reconsolidating in the preparation of the background for hydropaints and mineral and synthetic coatings on internal surfaces and External. The small size of the binder particles give the product excellent penetration capacity in the substrate, allowing reduction of water absorption and thus standardising the absorption of the treated supports. To be used on new or old walls, weak and inconsistent or not uniform in absorption as preparation of the base for subsequent application of hydropaints or synthetic and mineral coatings.

Color: white and color tags

Packaging: 5-10-20 LT tank

Usage: Indoor/outdoor

Dilution: 1 part of product and 2 parts of water

Yield: 8/10 sqm/lt per hand diluted product according to the absorption of the support

Application: Brush-Spray-roller

Certification: Tested according to ETAG 004

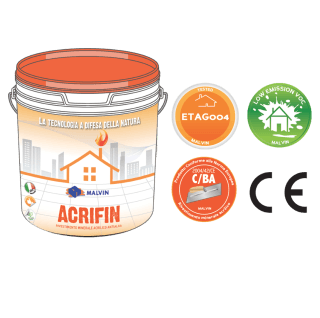

Acrylic coating for the decoration and protection of external and internal surfaces both new and old as civil plasters based on lime and cement, water-repellent plasters, mineral finishes, coat system, plasters coats and concrete walls, old coatings and synthetic paints, with a spatula and sponge finish. It guarantees good breathability of the walls and excellent resistance to weather and alkali.

Color: white

Package: 25 kg Barrel

Usage: Indoor/outdoor

Dilution: Points to use

Particle size: Type F 1, 0mm • Type M 1, 2mm • Type G 1, 5mm • Type SG 2, 0mm

Yield: Type F 1.5-2.0 kg/MQ 1, 0mm • Type M 1.8-2.3 kg/MQ 1, 2mm • Type G 2, 0-2, 5 kg/MQ 1, 5 mm • Type SG 2, 5-3, 0 kg/sq. mm, size 2mm,0mm.

Capillary water absorption coefficient "W24": < 0.10 kg/(MQ * 24 h ½)

Vapour diffusion resistance m equivalent "Sd": = 0.60 m

Kuenzle theory "W * Sd": < 0.06 kg/(MQ * 24 h ½)

Certification: Tested according to ETAG 004

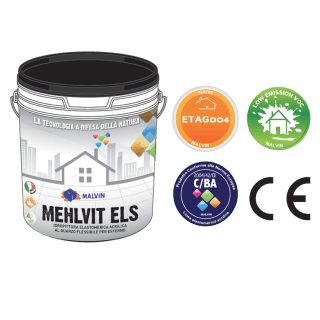

Acrylic anti-algae mineral-based elastomeric hydropaint made from selected quartz flours for decoration and internal and external protection of both new and old surfaces such as cement-based plasters, lime-based base, natural hydraulic lime base, NHL, Dehumidifies plasters, water-repellent plasters, mineral finishes, coat systems and premided coat plasters, concrete, old coatings, synthetic paints, plaster walls, concrete, wood and non-ferrous substrates. Excellent for repainting. Specifically to solve highlighting of microcavillature both in a preventive and resolutive way in case the phenomenon has already occurred.

Color: white

Package: Trunk 4-14 LT

Usage: Indoor/outdoor

Dilution: From 20% to 35% by volume with clean water; Roller ready to use

Particle size: Mehlvit els • 50 micron/Mehlvit els PLUS • 200 micron

Yield: 8/10 sqm/lt per hand

Elongation at break UNI 8490/17 to 7gg: 583%

Overhead Rate. Steam Transmission "V": 85 g/MQ 24h

Resistance to diffusion of water vapour "Sd": 0.246 m

Overhead Rate. Liquid water Permeability "W24": < 0.17 kg/(MQ * 24 h ½)

Respects the theory of Kunzel "W * Sd": < 0.04 kg/(MQ * 24 h ½)

Certification: Tested according to ETAG 004

Preparation base based on special Acril-siloxanic emulsions with high penetrating power. anchoring and reconsolidating in the preparation of the Acril-siloxane line on the internal and external surfaces. The small size of the binder particles give the product excellent penetration capacity in the substrate, allowing the reduction of water absorption and thus standardising the absorption of the treated supports, giving Excellent waterproofing, however, leaving the breathability of the surfaces unchanged. To be used on new or old walls, weak and inconsistent or not uniform in absorption as preparation of the base for subsequent application of hydropaints of the Siloxanic line.

Color: Colorless

Packaging: Tanica 5-10-20 LT

Usage: Indoor/outdoor

Dilution: 1 part of product and 2 parts of clean water

Yield: 8-10 sqm/lt per hand of product according to the absorption of the support

Certification: Tested according to ETAG 004

Anti-algae Acril-siloxane coating for decoration and internal and external protection of both new and old surfaces such as lime and cement base plasters, lime base, dehumidifiers, water repellent, mineral finishes, coat system, plasters premided coat, concrete, old coatings and synthetic paints, with a spatula or sponge finish. Nonreactive with atmospheric agents and ultraviolet rays. It has characteristics of high breathability and at the same time characteristics of water repellency.

Color: white

Package: Trunk 5-25 kg

Usage: Indoor/outdoor

Dilution: Ready to use

Particle size: Type F 1.0 mm • Type M 1.2 mm • Type G 1.5 mm • Type SG 2.0 mm

Yield: Type F 1.5-2.0 kg/MQ 1, 0mm • Type M 1.8-2.3 kg/MQ 1, 2mm • Type G 2, 0-2, 5 kg/MQ 1, 5 mm • Type SG 2, 5-3, 0 kg/sq. mm, size 2mm,0mm.

Capillary water absorption coefficient "W24": = 0.1/0.5 kg/(MQ * 24 h ½)

Vapour diffusion resistance m equivalent "Sd": = 0.14 m

Kuenzle theory "W * Sd": < 0.07 kg/(MQ * 24 h ½)

Certification: Tested according to ETAG 004

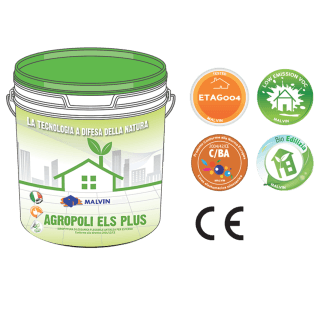

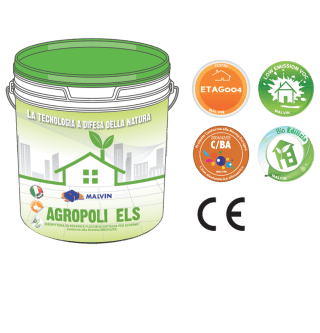

Mineral-based elastomeric hydropaint with thick anti-algae siloxanes, made from selected quartz flours for decoration and internal and external protection of both new and old surfaces such as civil plasters based on cement, lime base, Dehumidifier plasters, water-repellent plasters, mineral finishes, coat systems and premided coat plasters, concrete, old coatings, synthetic paints, clean shaven walls, Stucco, concrete, wood and non-ferrous supports. Excellent for repainting. Specific to solve  the highlighting of microcavillature in both preventive and resolutive way in case the phenomenon has already occurred.

Color: white

Package: Trunk 4-14 LT

Usage: Indoor/outdoor

Dilution: From 20% to 35% by volume with clean water; Roller ready to use

Particle size: Agropoli ELS 50 micron • Agropoli ELS PLUS 200 micron

Yield: 8/10 sqm/lt per hand

Elongation at break UNI 8490/17 to 7GG: 200%

Overhead Rate. Steam Transmission "V": 67 G/MQ 24h

Resistance to diffusion of water vapour "Sd": 0.314 m

Overhead Rate. Liquid water Permeability "W24": = 0.04 kg/(MQ * 24 h ½)

Respects the theory of Kunzel "W * Sd": < 0.01 kg/(MQ * 24 h ½)

Certification: Tested according to ETAG 004
