Thermo-insulation
Thermo-isolating mortars

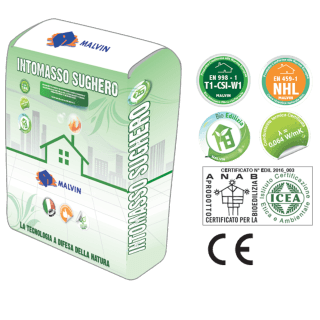

INTOMASSO SUGHERO
Eco-compatible certified Bio-mortar, fibered with a special fibre composition, based on natural raw materials such as cork granules and natural hydraulic lime in NHL 3.5 according to EN 459-1 for thermal insulating screed. Sound absorbing and dehumidifying, inside and outside also with the interposition of mat for the acoustic insulation of the noise, to be applied on slabs, flat and inclined roofs, terraces, also for the formation of slopes, for filling Light and drowning of plants on floor, etc. To be applied with plastered machine, continuous mixer, mixer by glass or by hand. It does not form barriers to steam and does not contain solvents. Recyclable as inert at the end of life.
Packaging:
50 lt sacks-55 sacks Footboards
Usage:
Indoor/outdoor
Color:
Hazelnut
Particle size:
≤ 3 mm
Yield:
1 bag for 1 sqm thickness 4 cm
Vapour-passage resistance coefficient EN 1015-19:
μ ≤ 5
Capillary water absorption EN 1015-18:
Class "W0"
Specific Heat EN 1745:
1.00 kj/kg K
Certified Thermal conductivity:
λ = 0.068 W/MK *
Specific weight dry mortar:
400 Kg/MC
* Certification:
Certificate Institute LAPI S.p.A. N ° 366.2 DC 0050/12

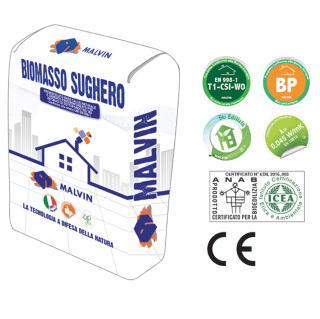

BIOMASSO SUGHERO
Eco-compatible bio-mortar, fibered with a special fibre composition specially studied, based on natural raw materials such as cork in granules and natural lime and bio-pozzolana for thermal insulating screed. Sound absorbing and dehumidifiers, inside and outside also with the interposition of mat for the acoustic insulation of the noise, to be applied on slabs, flat and inclined roofs, terraces, also for the formation of slopes. For light filling and drowning of plants on floor, etc... To be applied by machine, continuous mixer, mixer by glass or by hand. The characteristics of natural lime and bio-Pozzolan are such as to guarantee a very slow and constant hydraulic hardening that allows to obtain screeds with high durability and breathability. It does not form barriers to steam and does not contain solvents. Recyclable as inert at the end of life.
Packaging:
50 lt sacks-55 sacks Footboards
Usage:
Indoor/outdoor
Color:
White
Particle size:
≤ 3mm
Yield:
1 bag for 1 sqm thickness 4 cm
Vapour-passage resistance coefficient EN 1015-18:
μ ≤ 5
Capillary water absorption EN 1015-18:
Class "W0"
Specific Heat EN 1745:
1.00 kj/Kg K
Thermal conductivity EN 13813:
λ = 0.045 W/MK
Specific weight dry mortar:
400 Kg/MC

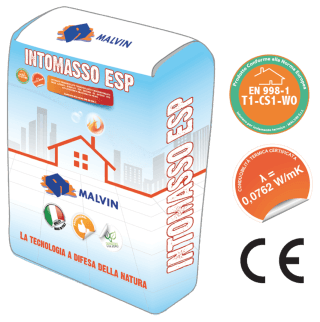

INTOMASSO ESP
Lightweight premixed screed, conforming to the minimum environmental criteria. based on hydraulic binders and expanded polystyrene beads, with compensated shrinkage and controlled drying, ideal for hand-or machine-making of background screed Thermal insulation to be applied directly on any internal and external surface, provided that it is stable and not subjected to capillary ascent suitable to receive the subsequent application of any type of screed even with interposition of insulation mats, Acoustic noise, suitable for the thermal insulation of roofs, for lightening jets or fills.
Packaging:
50 lt sacks-55 sacks Footboards
Usage:
Indoor/outdoor
Color:
Grey
Particle size:
≤ 5 mm
Yield:
1 bag for 1 sqm thickness 4 cm
Vapour-passage resistance coefficient EN 1015-19:
μ ≤ 9
Certified Thermal conductivity:
λ = 0.0762 W/MK *
Compression resistance at 28 days EN 1015-11:
1.5 N/mm (CSI)
Specific weight dry mortar:
400 Kg/MC
Minimum recycled/Recovered quantity:
≤ 10%
* Certification:
Certificate Institute Giordano n ° 281240 of 18/04/2011
Complies with minimum environmental criteria (CAM) DM 11 october 2017 Point 2.4.2.9

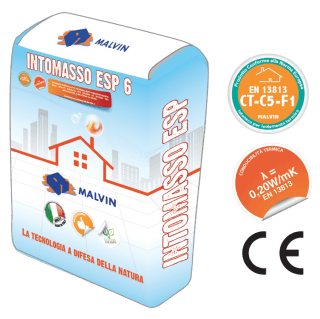

INTOMASSO ESP 6
Lightweight premixed screed, conforming to the minimum environmental criteria. based on hydraulic binders and expanded polystyrene beads, with compensated shrinkage and controlled drying, ideal for hand-or machine-making of background screed Thermal insulation to be applied directly on any internal and external surface, provided that it is stable and not subjected to capillary ascent suitable to receive the subsequent application of any type of screed even with interposition of insulation mats, Acoustic noise, suitable for the thermal insulation of roofs, for lightening jets or fills.
Packaging:
50 lt sacks-55 sacks Footboards
Usage:
Indoor/outdoor
Color:
Grey
Particle size:
≤ 5 mm
Vapour resistance coefficient EN 1745:
μ = 12
Thermal conductivity EN 13813:
λ = 0.20 W/MK
Compression resistance at 28 days EN 13892-2:
> 5 N/mm (C5)
Specific weight dry mortar:
600kg/MC
Minimum recycled/Recovered quantity:
≤ 10%
Complies with minimum environmental criteria (CAM) DM 11october 2017 Point 2.4.2.9
INTOMASSO ESP 10
Lightweight premixed screed, conforming to the minimum environmental criteria. based on hydraulic binders and expanded polystyrene beads, with compensated shrinkage and controlled drying, ideal for hand-or machine-making of background screed Thermal insulation to be applied directly on any internal and external surface, provided that it is stable and not subjected to capillary ascent suitable to receive the subsequent application of any type of screed even with interposition of insulation mats, Acoustic noise, suitable for the thermal insulation of roofs, for lightening jets or fills.
Packaging:
50 lt sacks-pallets made of wood 40 sacks
Usage:
Indoor/outdoor
Color:
Grey
Particle size:
≤ 5 mm
Yield:
1 bag for 1 sqm thickness 4 cm
Vapour resistance coefficient EN 1745:
μ = 12
Thermal conductivity EN 13813:
λ = 0.25 W/MK
Compression resistance 28 days EN 13892-2:
> 9 N/mm (C7)
Specific weight dry mortar:
1000 Kg/MC
Minimum recycled/Recovered quantity:
≤ 10%
Complies with minimum environmental criteria (CAM) DM 11october 2017 Point 2.4.2.9
INTOMASSO THERMO
Lightweight premixed screed based on hydraulic binders and light mineral aggregates (perlite), compensated shrinkage and controlled drying, ideal for the hand-or machine-making of thermoinsulating substrate screed. to be applied directly to Any internal and external surface as long as it is stable and not subject to capillary ascent. suitable to receive the subsequent application of any type of screed even with the interposition of mat for acoustic insulation from the noise of trampling and any Flooring such as: ceramics, terracotta, natural stones, parquets, carpets, rubber, etc. suitable for insulation
Thermal cover, for lightening or filling jets.
Package:
20 kg sacks-60 sacks-12.00 QL footboards
Usage:
Indoor/outdoor
Color:
Grey
Particle size:
≤ 2 mm
Yield:
6/7 kg/mq per cm of thickness
Thermal conductivity EN 13813:
λ = 0.18 W/MK
Compression resistance at 28 days EN 13892-2:
5 N/mm (C5)
Specific weight dry mortar:
600kg/MC

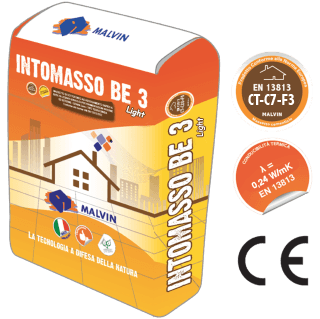

INTOMASSO BE 3 LIGHT
Lightweight premixed screed with compensated shrinkage, dry and controlled drying, based on hydraulic binders and hollow glass spheres, ideal for hand or machine formulation, even pressure pump, of lightened background screed. Apply directly to any internal and external surface as long as it is stable and not subjected to capillary ascent, non-fissure, non-detached is breathable and resistant to impact, suitable to receive the subsequent application of any flooring and membrane Waterproof and cementitious waterproofing; Suitable for the realization of screed in general both inside and outside, lightweight screed, insulating under tile, for slopes and roofs, floating scree on a resilient mattress for the acoustic insulation of noise from trampling.
Package:
Bulk in silo-20 kg sacks-70 sacks-14.50 QL Footboards
Use:
internal and external
Color:
Grey
Particle size:
≤ 4 mm
Yield:
10 kg/sqm per cm thickness depending on the degree of comping
Thermal conductivity EN 13813:
λ = 0.24 W/MK
Minimum application thickness
Anchored screed cm 5
Anchored screed (see application) cm 3.5
Float screed cm 5
Float screed on insulating mats up to 6mm cm 6
Float screed on insulating Mats 7 to 12mm 7 cm
Float screed on insulating mats 13 to 20mm cm 8
Compression resistance at 28 days EN 13892-2:
9.5 N/mm2 (C7)
Bending resistance at 28 days EN 13892-2:
3.2 N/mm2 (F3)
INTOMASSO CELL
Binder ready -made, in combination with a liquid additive based on natural, machine-active surfactants of lightweight, light-insulated underfloor screed, to be applied directly on any internal and external surface provided that it is stable and not Subject to capillary ascent, suitable to receive the subsequent application of any type of screed even with the interposition of Sound insulation mat. For thermal insulation of roofs and gradients configurations. For lightening jets or fills.
Package:
Powder component
Bulk in Silo
25 kg sacks-70 sacks-17.50 QL footboards
Liquid component
20 Lt Tank
1000 Lt Tank
Usage:
Indoor/outdoor
Colour:
Powder Component (grey)-liquid component (colourless)
Powdered component Granulometry:
< 0.115 mm
Yield:
~ 4/5 kg/sqm per cm thickness
Vapour-passage resistance coefficient EN 1015-18:
μ ≤ 10
Thermal conductivity EN 1745:
λ10, dry, mat = 0.098 W/MK
Specific weight dry mortar:
400 K/MC
PORON FLOOR
Printed thermal insulation panel in expanded polystyrene synthesised ESP
Pre-formed, for radiant heating systems with a
Floor covered with Microcrystal film with a batting with
Overlap and hooking on the 4 sides. Fitted on the top of the Clews
With a staggered axis of 100 mm coated with a rigid polystyrene film.
Product with CE marking. Reference Standard UNI EN 13163
Slab thickness
45 mm-Clews 23mm
60 mm-Clews 23mm
Slab size
1100x600mm
Packs
45 mm-Boxes of 15 PCs. -9, 90MQ
60 mm-Boxes of 11 PCs. -7, 26mq
Thermal conductivity declared Λd • EN 12667: W/MK 0.032
Reaction to fire: euroclass
Specific Heat EN 10456: J/Kg • K 1350
Compression resistance at 10% crushing: ≥ 200
