Slab Acoustic Insulation
Solai Acoustic Isolation
NOVAFLEX SIL AE 3/4/5
The resilient high density elastic panel in vulcanized and pressed granular rubber. Ecological sheath for insulation from trampling noises consisting of a mattress density of 750 kg/m³ (± 7%) formed by compounds of natural and synthetic elastomers, also coming from the recovery of PFU (tyres out of use), linked by polymerized Polyurethanes En masse.
Use:
Floating flooring for acoustic insulation on the floor of floors
Thickness:
3/4/5 mm
Rolls Size:
Thickness 3 mm L15m x H 1m-MQ 15-Pallet 16 Rolls-240 sqm • Thickness 4 mm L12m x H 1m-MQ 12-Pallet 16 Rolls-192 sqm • Thickness 5 mm L10m x H 1m-MQ 10-Pallet 16 Rolls-160 sqm
Apparent dynamic rigidity (s't):
MN/m³ 88 (UNI EN 29052-1 Cert. n ° AE-107003-MG-B)
Attenuaz. of the LIV. (ΔLW):
DB 19 (UNI EN 12354-2 weight screed above 115 Kg/m²)
Thermal conductivity (λ):
W/MK 0.1226 (UNI EN 12667:2002 Cert. n ° 078-09-the TR)
AESSE 2200
Mattress for noise insulation from foot traffic made of heat-bonded polyester fibers from the recovery of PET bottles, coupled on one side with a bituminous membrane. The rolls have a side edge of 5 cm adhesive to improve the installation. The main characteristics of the polyester give the product an excellent behavior also as thermal insulation. SIL AESSE 2200 does not cause problems in being handled and does not release harmful substances. It is imputrescible, resistant to mold and rodents, resistant to UVA and UVB rays, resistant to atmospheric agents.
USE:
Floating floors for soundproofing the trampling of floors
THICKNESS:
7.5 mm
ROLLS FORMAT:
L10m x H 1.05m - 10.5 square meters - pallet 25 rolls - 262 square meters
APPARENT DYNAMIC RIGIDITY (s'):
MN / m³ 10 (UNI EN 29052-1 Cert. N ° 095-09-acu DS)
DIMMED. DEL LIV. TRANSPORTATION (ΔLW):
DB 34 (UNI EN 12354-2 SOLDERING WEIGHT WEIGHT 115 Kg / m²)
THERMAL CONDUCTIVITY (λ):
W / mK 0.0431 (UNI EN 12667: 2002 Cert. N ° 035-09 the TR)
AEMIX PUR
Ecological mattress obtained from the agglomeration of flexible expanded polyurethane flakes recovered by processing from waste of production or from products that have reached the end of their life cycle, bonded by polymerized polyurethanes
En masse. SIL MIX PUR is made of a waterproof side with high resistance non-removable polyethylene. Silmix PUR has a good mechanical strength and excellent absorption capacity for shocks.
Use: Floating flooring for acoustic insulation on the floor of floors
Thickness: 5 mm
Rolls Size: L30 m x H 1, 05m-MQ 30-Pallet 9 Rolls-270 sqm
Apparent dynamic rigidity (s): MN/m³ 22 (UNI EN 29052-1 Cert. n ° AE-086002-MG)
Attenuaz. of the LIV. (ΔLW): DB 28 (UNI EN 12354-2 screed weight above 115 Kg/m²)
Thermal conductivity (): W/MK 0.0339 (UNI EN 12667:2002 Cert. n ° 039-09 The TR)

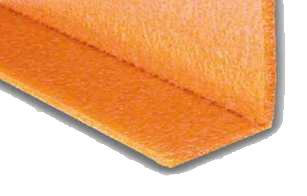

AEFLEX
Polyethylene band for the disjunction of the working hood of the brick partitions. Silflex is a closed cell cross-linked polyethylene band, lightweight – Waterproof – non-rot – resistant to mold and
High resistance to chemical aggressions and alkaline reactions of cementitious artifacts.
Dimensions: Thickness 6mm • Height 50 + 150mm
Rolls Size: L 50 mt H 20cm-Pack 5 Rolls-ML 250
ISOLBAND AE
Resilient cutting strip for the desolation of vertical partitions. Strip size resilient wall for decoupling from the floors of the internal vertical partitions, consisting of compounds of natural and synthetic elastomers, coming from the recovery of PFU (tires), bonded by mass cured polyurethanes.
Thickness: 4 mm
Rolls Size: AE 20-L 15 Mt H 20 cm-Pallet ml 1050 • AE 30-L 15 MT h 30 cm-Pallet ml 630 • AE 40-L 15 MT h 40 cm-Pallet ml 420
Apparent dynamic rigidity (s't): MN/m³ 66 (UNI EN 29052-1 Cert. n ° AE-107004-MG-B)
Attenuaz. of the LIV. (ΔLW): DB 21 (UNI EN 12354-2 weight screed above 115 Kg/m²)
Thermal conductivity (): W/MK 0.1226 (UNI EN 12667:2002 Cert. n ° 079-09-the TR)
KEM SOFT 7
Impact soundproofing insulation obtained by the coupling of a layer of chemically crosslinked closed polyethylene foam of blue color, with a plasticizer, of density 30 Kg / m³, and thickness 5 mm, with a non-woven polyester fiber felt of weight 100 g / m² coupled with polypropylene fibers with additives of special resilient resins, weight 100 g / m², thickness 2 mm. From the part of the chemical cross-linked expanded polyethylene, an embossing and a lamination of a transparent polyethylene film bearing the product logo is performed, this film acts as an anti-carbon and brake
vapor.
USE:
Floating floors for soundproofing the trampling of floors
ROLLS FORMAT:
50 x 150 cm - 75 square meters • THICKNESS: 7 mm
APPARENT DYNAMIC RIGIDITY (s'):
MN / m³ 14 (UNI EN 29052-1)
DIMMED. DEL LIV. TRAINING (ΔLnw):
dB 27
THERMAL CONDUCTIVITY (λ):
W / mK 0.0326
UNDER-DOOR SUPPORT
Underdoor support.
Dimensions: Thickness from 8 mm • Dimensions from 11 cm
Size: 200 cm Bars-80 m pack

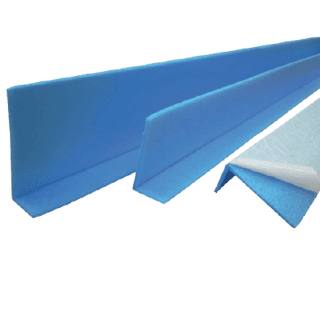

ANGLE, EDGE, PLANE
ADHESIVES FOR DOORS
Adhesive corner - Adhesive edge - Adhesive door upright.
DIMENSIONS:
5 mm thick
FORMAT:
ADHESIVE ANGLE:
Dimensions 5 10 • Package 72 pcs
ADHESIVE ADHESIVE:
Dimensions 5 10 • Package 64 pcs
ADHESIVE DOOR MOUNT:
Dimensions 5 10 • Package 30 pcs
STICKY TAPE
Scotch tape.
USE:
for the waterproof sealing of sheets and converses
ROLLS FORMAT:
L 120 mt H 50 mm
SIL AESSE 3000
Mattress for the acoustic insulation from the noise of trampling made of flexible polyurethane agglomerate, coupled by a side with a glass of bitumen and polypropylene. The rolls have a 5 cm lateral selvedge. The characteristics of the polyurethane agglomerate give the product excellent behaviour also as thermal insulator. SIL Aesse 3000 does not give problems in being handled and does not release harmful substances.
Use: Floating flooring for acoustic insulation on the floor of floors
Thickness: 6.5 mm
Rolls Size: L10m x H 1, 05m-MQ 10.5-Pallet 25 Rolls-262 sqm
Apparent dynamic rigidity (s): MN/m³ 22 (UNI EN 29052-1 Cert. n ° 016-09-ACU DS)
Attenuaz. of the LIV. of tread (ΔLW):D B 28 (UNI EN 12354-2 weight screed above 115 Kg/m²)
Thermal conductivity (λ): W/MK 0.0415 (UNI EN 12667:2002 Cert. n ° 036-09 The TR)
